About Us
Continental Construction International Limited (CCIL) came into existence on 03.04.2008 as a result of demerger of its parent company Continental Construction Ltd. (CCL). The demerger of CCL was ordered by Hon'ble Company Law Board vide its orders dated 21.11.2007 & 16.05.2008. CCIL is promoted by Basi Group (largest shareholding group in CCL i.e. 43%) and is headed by Mr. Manjeet Singh Basi, who has a vast experience of more than 30 years in construction field and CCL has completed various major projects of international repute under his expert guidance and supervision.
Chamera H.E. Project (HP) India
Chamera Hydro Electric Project, Himachal Pradesh, India

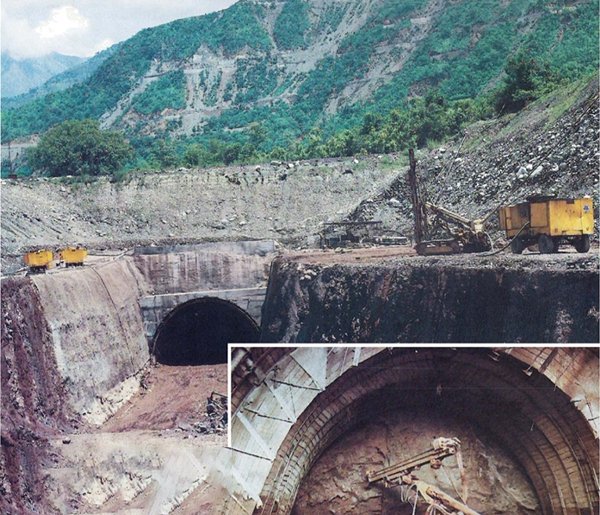

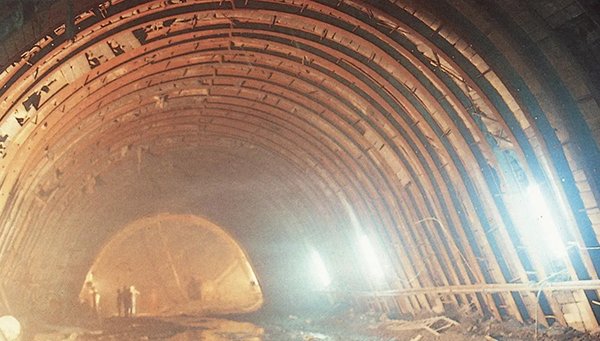

Power Tunnel for Chamera Hydroelectric Project, India. 9.5 M finished diameter horse shoe shaped Power Tunnel, including large scale drilling. blasting and excavation in rock, concrete lining, cement and sand grouting. steel supports and anchor bolting .
Driving of 760 M length of 10.50 M excavated diameter Headrace Tunnel, from one face, was achieved in a short span of six months. This is the maximum sustained rate of progress in tunneling done by any agency in the Himalayas, so far. A record length of 48 metres of tunnel was driven in a matter of7 days.
The construction of tunnels at Chamera was fully mechanised, using the latest tunnelling equipment, including hydraulic drilling and rock bolting jumbos, low profile hydraulic dumpers, shotcreling machines wilh robot booms etc. The tunnels were excavated in most difficult geological conditions, in an area of reverse faulting and thrusts, typical of the Himalayan foothills. A milestone of the Project was the Tail Race Tunnel crossing 40 M below the bed of a major Indian river “Ravi" . This is the largest under-river tunnel crossing in the Himalayas.
The work of construction of tunnels at Chamera is fully mechanised using the latest tunnelling equipment including hydraulic drilling and rock bolting jumbos, low profile hydraulic dumpers, shotcreting machines with robot booms etc. The tunnels are being driven in most difficult geological conditions in an area of reverse faulting and thrusts typical of the Himalayan foothills. A milestone of the Project was the Tail Race Tunnel crossing a major river Ravi, 40 M below its bed. This is the largest under-river tunnel crossing anywhere in the Himalayas.
- Tunnel: 9.S M finished dia, 3700 M. long
- Rock Excavation : 404,000 cu m
- Steel Support : 1,000 MT
- Concrete Tunnel lining : 50,000 cu m
- Rock Bolting : 121,000 RM
- Shotcreting : 8,000 cu m
- Purpose : Hydro Power Generation (S40 MW)
- Client : National Hydroelectric Power Corporation Ltd. India
